Equipment on 9cm:
- A homebrew transverter based on the Zac Lau no tune design
is used as the basis of the system. This provides a low level
output to the PA.
- LNA is a DB6NT Preamp with NF of 0.73 dB and a gain of 28.4
dB
- Power amp is 2 combined "toshiba" 50 W amps. Homebrew
splitters and combiners are used for ~100 W output.
- Feed is a scaled version of the "RA3AQ" optimised septum
built out of 0.5mm copper sheet
- LO is a homebrew design that is PLL locked to a GPS derived
10 MHz signal through a "VE1ALQ" PLL board
- Initially it was thought that a Rx capability of 3456 MHz would
be required, but as it stands all currently active 9cm stations
have access to 3400 MHz and as such this is currently used. A
2nd LO has been built with appropriate switching to allow Rx in
the 3456 Mhz band.
- A homebrew transverter based on the Zac Lau no tune design
is used as the basis of the system. This provides a low level
output to the PA.
- LNA is a DB6NT Preamp with NF of 0.73 dB and a gain of 28.4
dB
- Power amp is 2 combined "toshiba" 50 W amps. Homebrew
splitters and combiners are used for ~100 W output.
- Feed is a scaled version of the "RA3AQ" optimised septum
built out of 0.5mm copper sheet
- LO is a homebrew design that is PLL locked to a GPS derived
10 MHz signal through a "VE1ALQ" PLL board
- Initially it was thought that a Rx capability of 3456 MHz would
be required, but as it stands all currently active 9cm stations
have access to 3400 MHz and as such this is currently used. A
2nd LO has been built with appropriate switching to allow Rx in
the 3456 Mhz band.
| Dish Feed: |
The dish feed is a square septum feed with a transition to
a round septum and a choke flange to improve dish
illumination. It is a scaled version of "RA3AQ's" feed that
was optimised for 1296 to feed dishes with f/d of 0.39 -
0.45. The feed was built out of 0.5mm copper sheet and
the septum is seam soldered into position.
a round septum and a choke flange to improve dish
illumination. It is a scaled version of "RA3AQ's" feed that
was optimised for 1296 to feed dishes with f/d of 0.39 -
0.45. The feed was built out of 0.5mm copper sheet and
the septum is seam soldered into position.

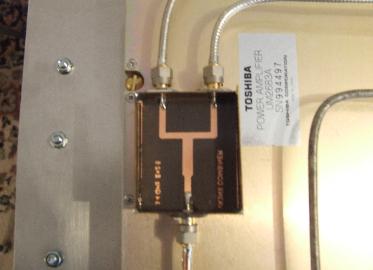

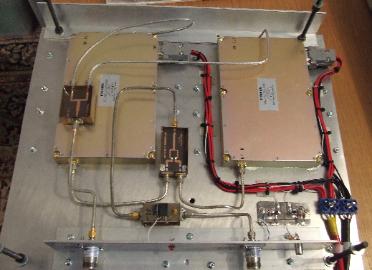

| Power Amplifier: 2 x Toshiba 55 W modules |
The power amplifier uses splitters and combiners etched on "Ultralam 2000 " teflon board. With
100 W carrier for 30 seconds, there is no detectable heating of the board. The amplifers utilise
isolators in the output so a standard impedance matching transformer was built for the
combiners. Because of the isolators the need for isolation of the combiner ports is somewhat
diminished. On the input a wilkinson Splitter is used with provision for an attenuator in each
line. This provides an exceptional Port-Port isolation.
100 W carrier for 30 seconds, there is no detectable heating of the board. The amplifers utilise
isolators in the output so a standard impedance matching transformer was built for the
combiners. Because of the isolators the need for isolation of the combiner ports is somewhat
diminished. On the input a wilkinson Splitter is used with provision for an attenuator in each
line. This provides an exceptional Port-Port isolation.
| Audio Clips from 9cm EME: VK3NX - ECHO VK3NX AS RECEIVED AT G3LTF OK1CA SSB QSO 2014 DUBUS DL7YC SSB QSO 2014 DUBUS GB6GHY ( "GOONHILLY " EARTH STATION) CW and SSB |
| Sun noise = 11.3dB with SFU = 63 Moon Noise = 0.52 dB @ Apogee CS / Gnd = 5.0 dB |
| List of stations Currently On or working to be on, 9cm EME. (Courtesy of DF6NA) |

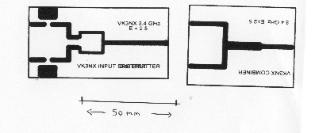

| "Eagle PCB Editor" Board Files Input Splitter (Wilkinson) Output Combiner (Transformer) For ULTRALAM 2000 BOARD ONLY!! |
| EME 2008 presentation by Peter Blair (G3LTF) on the "Revival of 9cm EME" Excellent technical info and pictures. |
| THINKING OF TRYING 9cm EME ? READ THIS ARTICLE BY VE4MA. |

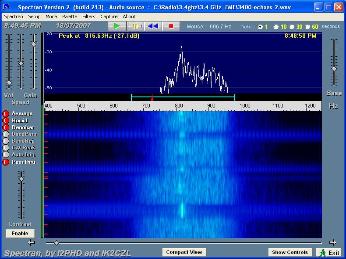

| Echo signal |
| RW1AW SSB during 2008 ARRL |
