| 2.3 GHz Feed Assembly |
The 2300 -2424 Feed used is scaled from an "RA3AQ" septum feed that was initially optimised for 1296
MHz for an f/d of 0.39 .... 0.45.
Tuning screws were required as per the "OK1DFC" septum and with compromised tuning b/w the Rx
and Tx ports a Return Loss of 24dB was achieved with a Port - Port isolation of 22dB.
MHz for an f/d of 0.39 .... 0.45.
Tuning screws were required as per the "OK1DFC" septum and with compromised tuning b/w the Rx
and Tx ports a Return Loss of 24dB was achieved with a Port - Port isolation of 22dB.
The feed was built out of 0.5mm copper sheet that was bent into the square W/G and the septum was

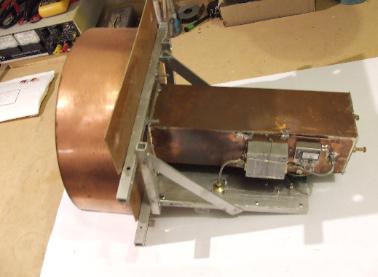

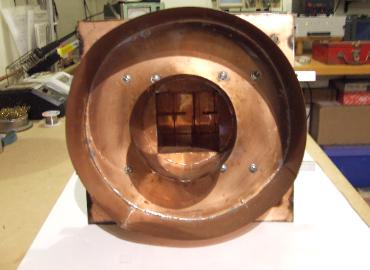

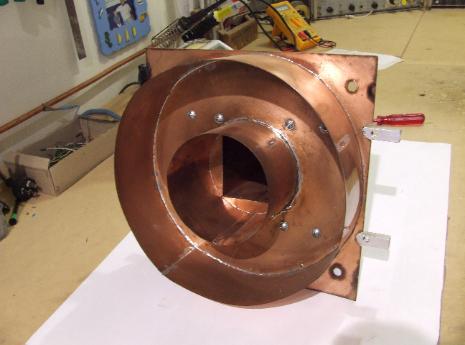

soldered into the middle. The pictures below also show the isolating SMA relay and the 'WD5AGO" preamp
on the feed assembly. The 2 brass tuning screws are also visible.
soldered into the middle. The pictures below also show the isolating SMA relay and the 'WD5AGO" preamp
on the feed assembly. The 2 brass tuning screws are also visible.
